Provide One-stop Security Solution for a Safer World
Digital signal & processor
Self diagnosis
Auto archiving
Energy saving design
One key turn off
Indication of the date and time
Dangerous object auxiliary detection
Dual - energy X-Ray Baggage Scanner for small bags & mails
Applications:
Courts, Railway Stations, and Event Bag,Electronic Factories, Shoe Factories,Toy Factories ,Line Security Management Package, etc.

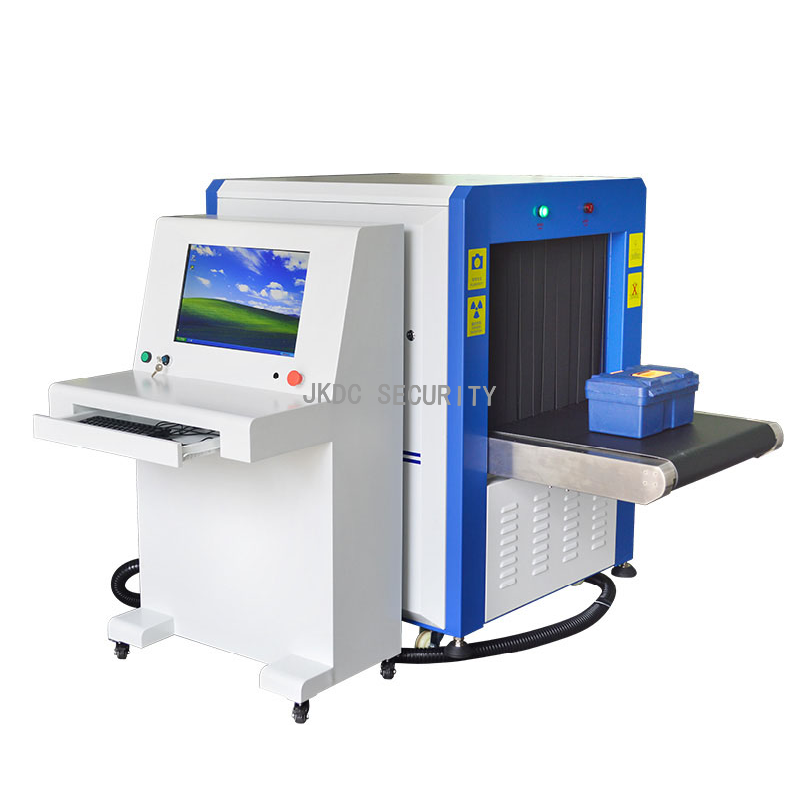

| Product Name | 65*50CM X Ray Baggage Scanner For Security Inspection |
| Model Number | JKDC-6550C |
General specification | |
Tunnel Size | 650(W)×500(H)mm |
Conveyor Speed | 0.22m/s |
Conveyor Max Load | 150kg(Evenly distributed) |
X ray leakage | less than 0.5 μGy/h |
| Wire Resolution | Ф0.16mm metal line |
X ray dose per each inspection | less than 1.0 μGy |
| Penetration | 34mm Metal Stell |
| Film Safety | Guarantee ISO1600 Film |
| Monitor | 19 inch |
| Power | 650W |
| Operation temperature/Humidity | 0°C-45°C/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20°C-60°C/20%-95%(non-condensing ) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | less than 0.65KW |
Image system | |
X-ray sensor | L-shaped photodiode array detector , 16-bit depth |
Monitor | High-Resolution Color, LCD Accord, 19 inch |
Image Processing | Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval |
Image grey level | 4096 |
Image max resolution | 1024*1280 pixel |
image processing | 24bit for processing real-time |
image storage | Storage 10000 pictures in real-time |
X-ray generator | |
Generate direct | Vertically upward |
Anode Anger | 80 degree |
Anode voltage | 140KV |
Anode power | 0.3mA |
Cooling / Duty Cycle | Oil Cooling /100% |
Volume: 4.4 CBM
Gross Weight (include the wooden box): 460 KGS
Wooden Case Size (mm):
Package 1: 210*105*146 cm
Package 2: 132*87*74 cm
