Provide One-stop Security Solution for a Safer World
Tripod Turnstiles are used in applications including stadiums and arenas,perimeter and interior security,recreation and amusement parks,retail crowd control,transit fare collection and lobby access control.
GB 304 stainless steel sheet metal forming, beautiful, durableChannel width: less than 550 (mm);

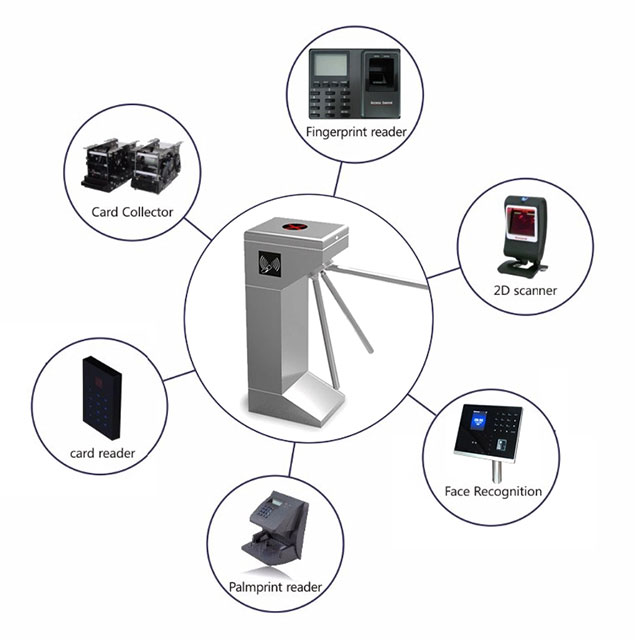

Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.
Working environment: indoor(outdoor use shall stand awning)
Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;
Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching ;
Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements

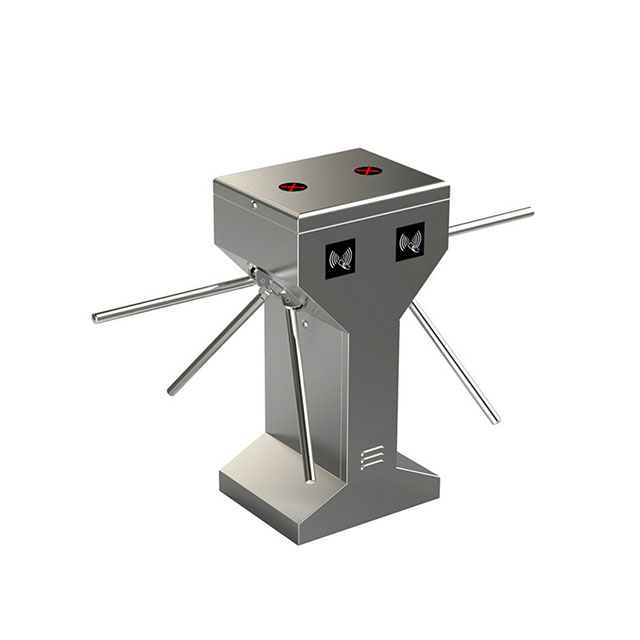

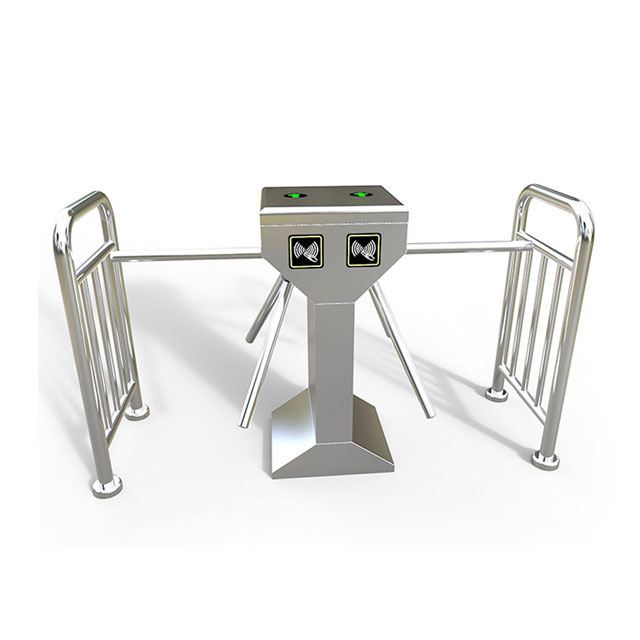

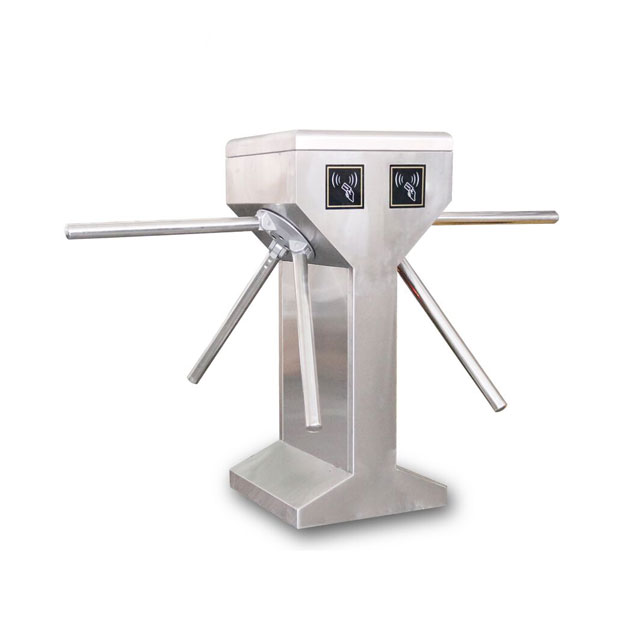

| Product Name | 2 Lanes Vertical Tripod Turnstile Gate 550mm Channel Width |
Model Number | JKDC-48D |
| Material | 304 Stainless Steel |
| Dimension of Housing (L×W×H mm) | 480×560×980mm(Can customize) |

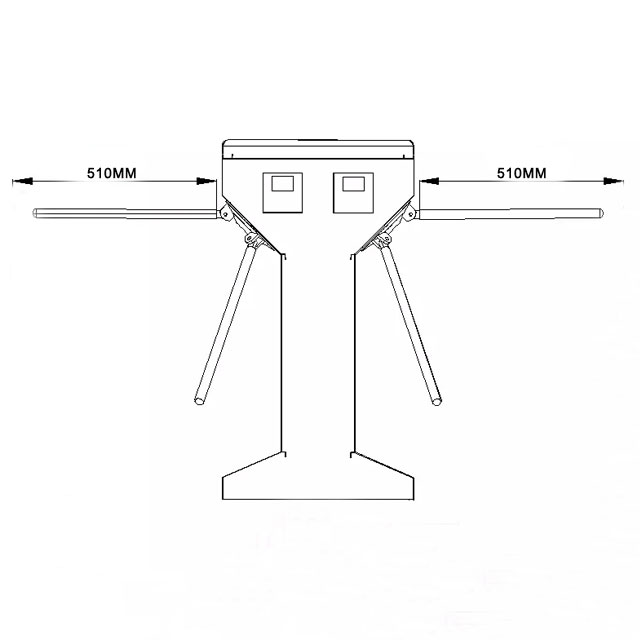

Bar length | 510mm |
Arm Diameter | 40mm |
| Power Supply | AC 220V/110V±10% |
| Frequency | 50/60Hz |
Traffic speed | 40 persons/min |
| Working Voltage of Motor | DC24V |
Rated Power | 40W |
Communication interface | RS485/TCP/IP |
| Working environment | Indoor and outdoor (Shelter) |
| Package Size | |
| Dimension | 59*70*117cm |
| MEAS | 0.48CBM |
| Net Weight | 55kg/pc |
| Gross Weight | 70kg/pc |
