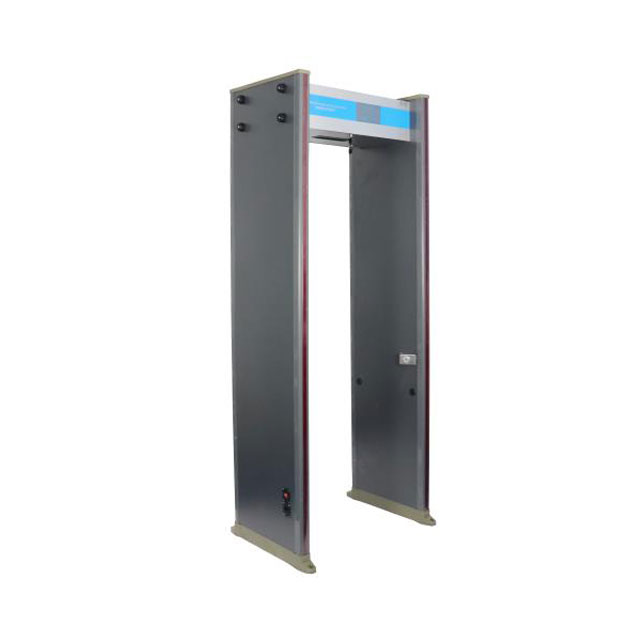

Temperature Measure Walk Through Detector is a special type of equipment, can quickly screen human body temperature in crowded places. It is specially used in prisons, detention centers, docks, stations, hospitals, schools, kindergartens, stadiums, hotels, entry-exit ports, ports, airports, entertainment venues and factories, etc.
Only temperature detect, without metal detector
Accuracy: ± 0.1 ° C.
Alarm mode: voice alarm, real-time display of body temperature.
Response time: 1 second, passing rate is about 50-60 people / min.
The 7-inch screen displays real-time body temperature and records the number of people tested.
Temperature measurement detection area: the imported medical double probe technology is adopted, which is the first in the industry to install one probe at the left rear and one probe at the inner inclined edge of the right front door.
Intelligent tatistics: the intelligent passenger flow and alarm counting function can automatically count the number of people passing and the number of alarms
Model No.: JKDC-300K
Input working voltage: AC 85V-265V 50-60Hz
Product weight: about 65.5kg
Equipment power: <35W
Dimensions: 2200mm (height) × 750mm (width) × 500mm (depth)
Working environment: 10 ℃ —45 ℃
Channel size: 2000mm (height) × 700mm (width) × 500mm (depth)
Body temperature measurement: High accuracy, error ≤0.3 ℃, no error measurement.
Real-time display: fast and accurate, response time <0.1s.
LCD display: 7-inch large screen displays real-time body temperature and records the number of people tested.
Network transmission; configure network port output, suitable for remote monitoring.
Measurement accuracy: ± 0.3 ℃, resolution is 0.1 ℃.
Measuring range: Body temperature mode 32 ℃ ～ 42.5 ℃.
Pass rate: 50-60 people per minute
