Provide One-stop Security Solution for a Safer World

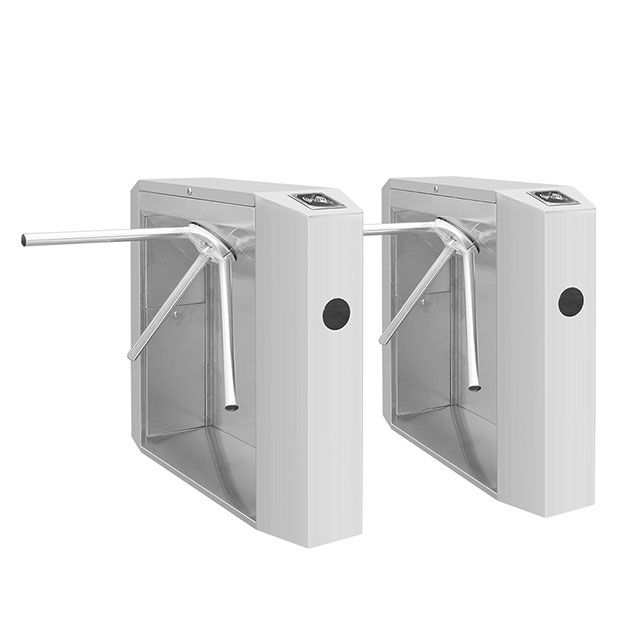

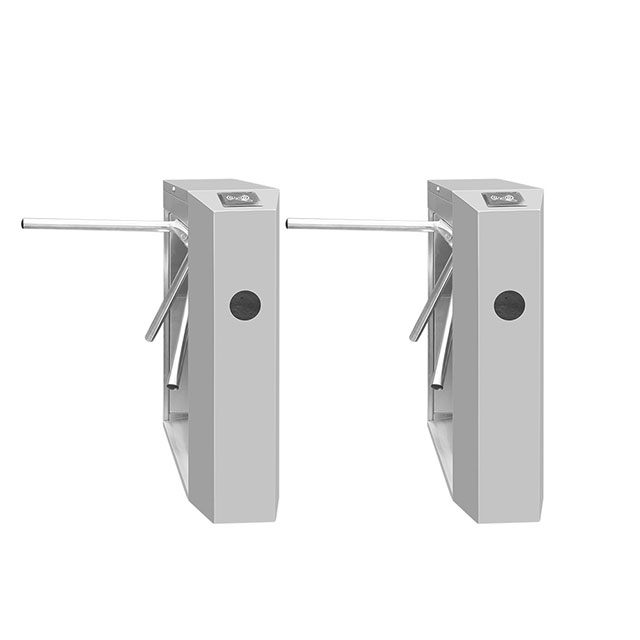

Tripod Turnstile is generally used in simple dissuasion level access control of public passages. It is widely used in work attendance checking systems of factories, consumption systems of public institutions, access control of residential estates, ticket exit systems of scenic, sports and other arenas, handkey management systems of construction sites and so on. The mechanical part of the turnstile contains an emergency control device, which allows free passage in case of power fail.
304 stainless steel or 316 stainless steel
CNC stamping and laser drilling, presenting a novel and elegant appearance
Innovative and unique mounting surface ensures simple and convenient installation for system integrators;
Direction can be set as single-direction or bi-direction
Direction indicator
Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically;

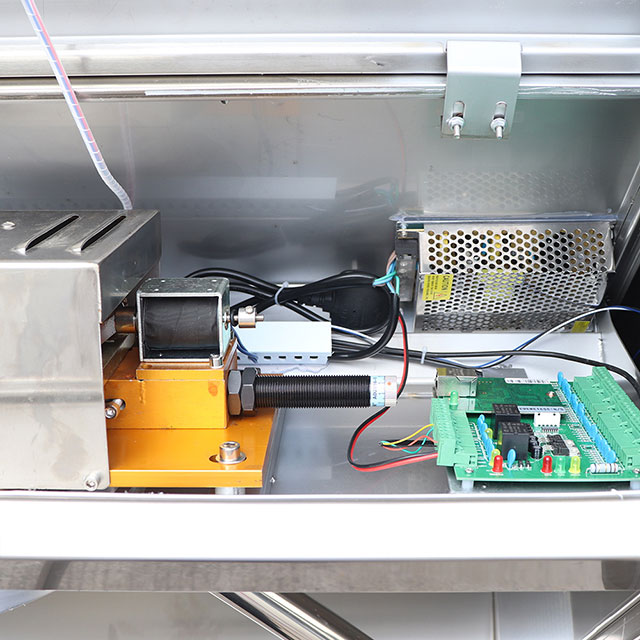

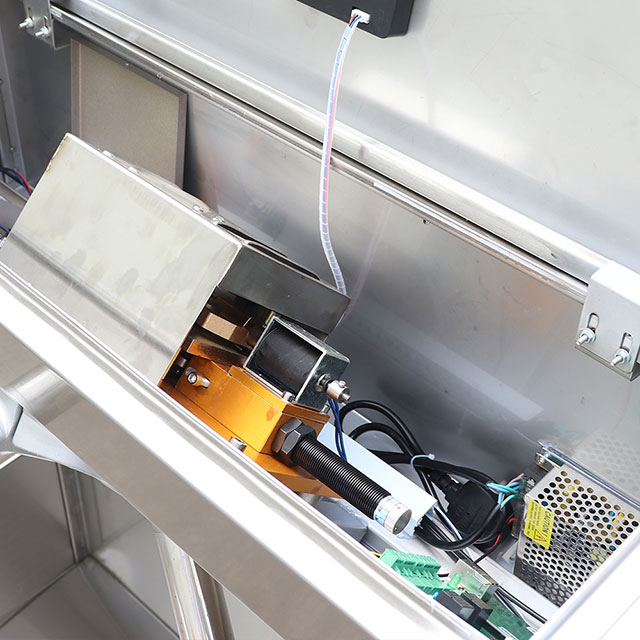

The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

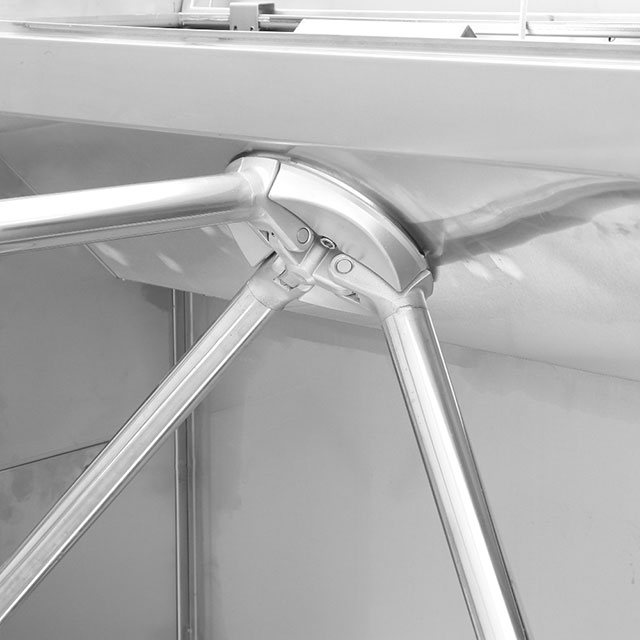

Dual-bearing device, keeping the gate in balance when there is external force.
| Product Name | RFID Access Control Card Swipe Entrance Exit Tripod Turnstile |
Model Number | JKDC-333A |
Bar length | 510mm |
Arm Diameter | 40mm |
| Voltage | AC 220V/110V±10% |
| Frequency | 50/60Hz |
Current | 3A |
| Control circuit | DC24V |
Power consumption | 40W |
Working temperature | -20°C~60°C |
| Working humidity | 0~95%RH |
| Package Size | |
| Dimension | 127*37*116cm |
| MEAS | 0.55CBM |
| Net Weight | 68kg/pc |
| Gross Weight | 75kg/pc |
